Renault 12 PIN J1939 to OBD-II Adapter Cable
Introduction
Do you need to connect your AutoPi device to a Renault truck for J1939 diagnostics and data logging?

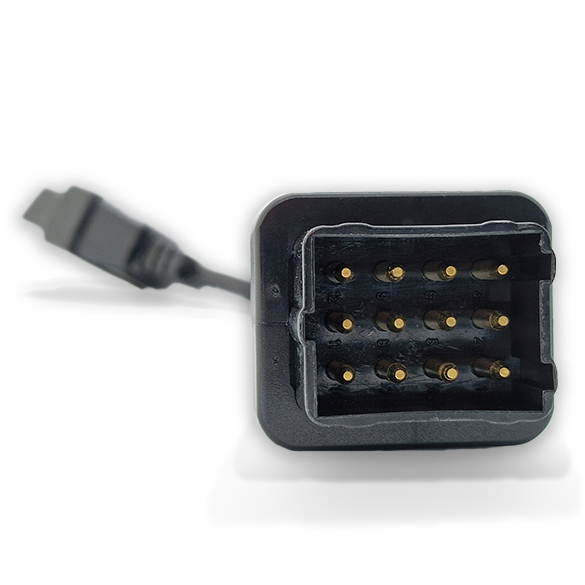

The Renault 12 PIN J1939 to 16 PIN OBD-II Adapter Cable fits many Renault truck models — including heavy-duty trucks and commercial vehicles — and lets you easily connect your AutoPi device to start reading J1939 data. Simply locate the 12-pin diagnostic port in your vehicle, typically found in the cabin, and plug in the cable.
The cable features a plug-and-play design for quick and secure connections, and is constructed with premium materials built for heavy-duty environments.
This adapter cable can be purchased through the AutoPi shop: Renault 12 PIN J1939 to 16 PIN OBD-II Adapter Cable.
Specifications
| Property | Details |
|---|---|
| Compatibility | Renault trucks with 12 PIN diagnostic port |
| Connector Types | 12 PIN (male) to 16 PIN OBD-II (female) |
| Protocol Support | J1939 for vehicle diagnostics |
| Durability | Premium materials for heavy-duty use |
| Ease of Use | Plug-and-play design |

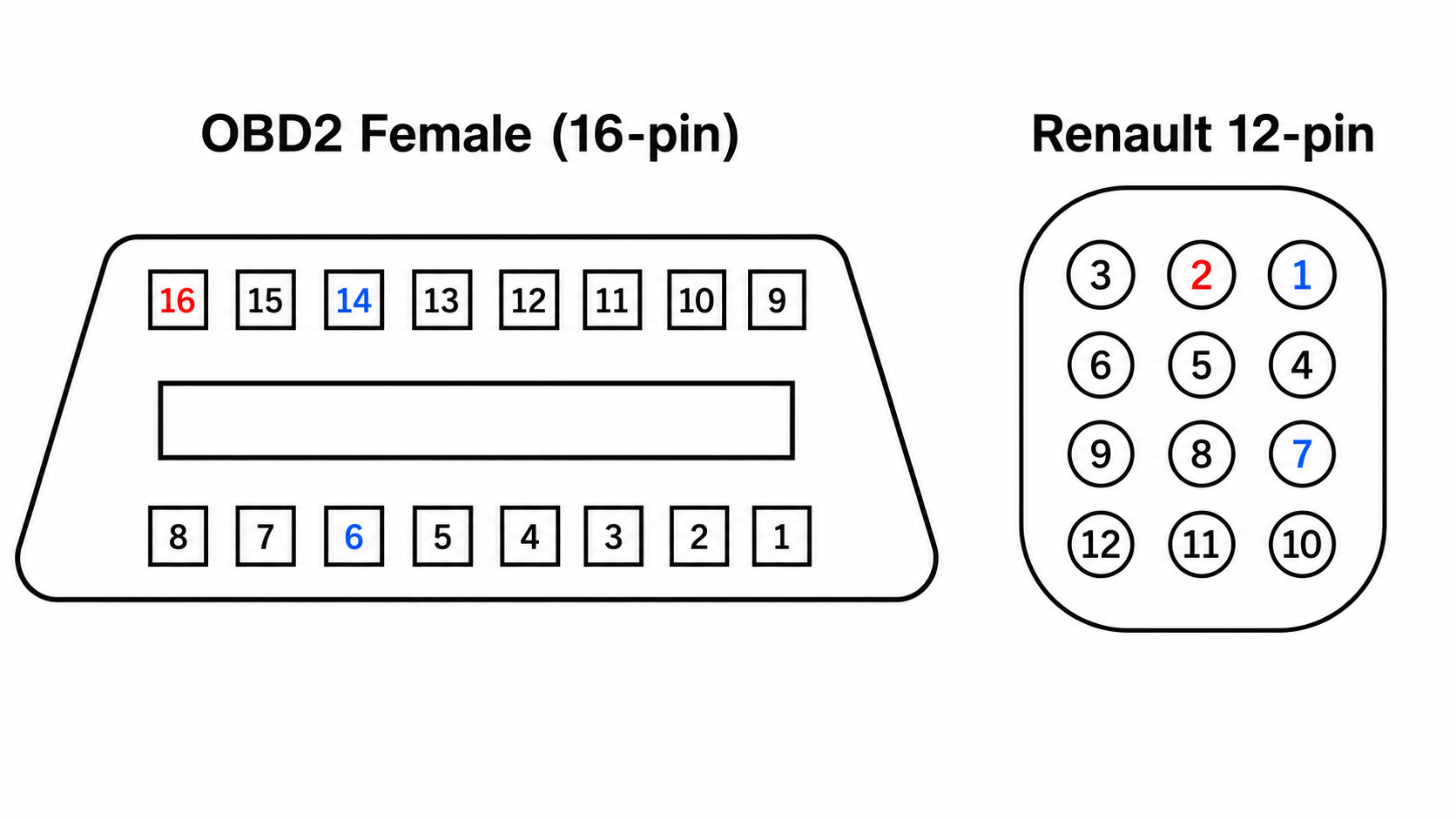

Pinout
| AutoPi Function | Renault 12 PIN | OBD-II 16 PIN |
|---|---|---|
| CAN High | Pin 1 | Pin 6 |
| CAN Low | Pin 7 | Pin 14 |
| Power | Pin 2 | Pin 16 |
| GND | Pin 5 | Pin 5 |
The pinout above is based on the standard J1939 to OBD-II mapping. Refer to your Renault truck documentation for any model-specific variations.
