Technical Specifications

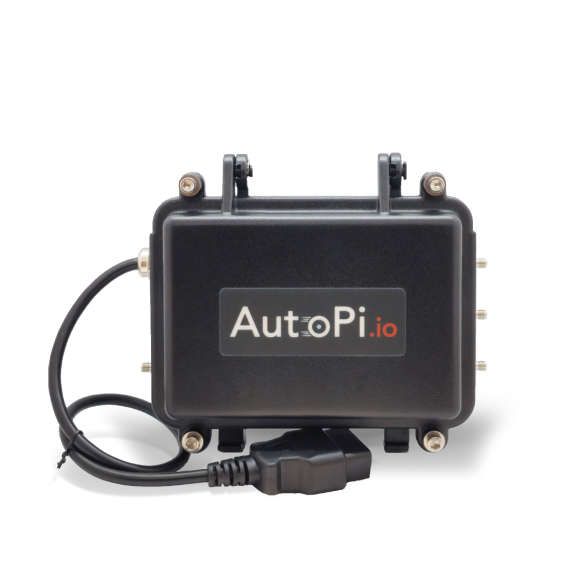

Ready to dive into what makes the AutoPi CAN-FD Pro such a powerful tool, designed for full speed automotive datalogging of dual CAN-FD channels? This guide breaks down all the key technical specs — all you need to know.

New to AutoPi? Want all details in one place? Download the official datasheet here: AutoPi CAN-FD Pro Datasheet

Full Technical Specs

Check out the table below for an easy breakdown of everything inside the AutoPi CAN-FD Pro.

Name	Description
Processor	Broadcom BCM2711 Quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz (RPi CM4)
Memory	4GB LPDDR2 SDRAM
Storage	32GB on board eMMC (expandable with USB flash drive)
Modem	Integrated 4G/LTE Cat 4 connection (3G/EDGE fallback) (150Mbit DL / 50Mbit UL) (Global connectivity in a single device)
Secure Element	Secure Element
Bluetooth	Bluetooth
GPS/GNSS	Integrated GPS + A-GPS (GPS/GLONASS/BeiDou/Galileo/QZSS)
Power	Line Voltage: 12.5V AC (Car battery power). Up to 35V (Trucks). Support for trucks with up to 35V
Expansion	2 x USB, Gigabit Ethernet and HAT
Wireless	WiFi: 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN Bluetooth: Bluetooth 5.0 + Bluetooth Low Energy (BLE)
Accelerometer	3-Axis accelerometer
Gyroscope	Built in 3-axis gyroscope
Automotive Interface	2X CAN-FD interface with up to 5Mbps Data rate with integrated CAN data filters
Input Slots	SIM Card: Nano SIM (SIM subscription purchased separately)
Audio	Built-in speakers
Video Out	mini HDMI @ 1080p60 Video Output
Operating System	Raspbian OS with preconfigured AutoPi Core software

tip

Our AutoPi CAN-FD Pro is built for performance and flexibility.

4-in-1 External Antenna: Included with every device — supports 2x 4G/LTE, 1x GPS, and 1x WiFi/BLE for top-notch connectivity.
Tailscale Add-on Pre-Installed: Our latest feature makes remote access faster and more secure than ever. Troubleshooting on the go? No problem — you’ll be connected in no time.

4-in-1 preinstalled antenna kit

The 4in1 Antenna Kit is a high-performance solution designed to optimize connectivity for the AutoPi CAN-FD Pro. Featuring two LTE antennas, one GPS antenna, and one WiFi antenna, this compact system delivers strong signal reception and reliable communication across multiple wireless standards. Built for demanding environments, the antenna kit ensures stable and long-term performance.

Name	Description
Antennas	2x LTE (main and AUX), 1x GPS, and 1x Wi-Fi
Wi-Fi Support	Dual-Band (2.4 GHz and 5.8 GHz)
Connector Types	SMA for LTE and GPS, RP-SMA for Wi-Fi (configurable)
Cable Lengths	Standard 3m cables and 10 cm U.FL connectors
Mounting Options	Through-hole, adhesive, or magnetic
Compatibility	LTE/4G, GSM/3G, Wi-Fi, ISM, M2M, ZigBee, Bluetooth, and more
