My Library

In this page we go through the Library section of our Cloud. Below is a screenshot of an example Library that is already filled with some PIDs and CAN messages. Open the screenshot in a new tab to get a better overview of the whole page.

We will start off this guide by going through some of the basic actions that you can do in the library page, including a section on how to use the Community Library to find new PIDs and CAN messages. Then, we will move on to the process of creating a PID, testing it out and sharing it with the community. We'll repeat the process but for CAN messages and their CAN signals instead. Lastly, we will show you some quick steps for importing a DBC file.

Basic Actions

There are a few buttons that will allow you to accomplish different tasks in the library. The main element is the table filled with PIDs and CAN messages. You are able to delete a single entry in the table by clicking on the trash icon to the far right of each item in the list. You can also select multiple items and then execute a specific action from the 'Actions' dropdown menu on the bottom-right of the page. You are also able to filter the items that are shown using the filters at the top of the page. You are also able to copy PIDs and CAN messages from the community library. You are also able to create new PIDs and CAN messages and can also import external DBC files into your library which you can later on share with the rest of the community. We are going to review these actions in the following sections.

tip

If you're unsure of the difference between PIDs and CAN message signals, you can take a look at our OBD-II introduction guide, which goes into more details about that.

Community Library

The community library tab will show you a list of PIDs or CAN messages available for the vehicle that's assigned to your currently active device. If there is no vehicle assigned at the moment, no filters will be applied, so you will need to add them manually for the vehicle you're interested in.

caution

Only the my.autopi.io environment has a populated community library. If you are a business customer, you won't see any of the community shared library on your dedicated server.

note

There is a slight difference between the two types - OBD-II PID and Proprietary PID. Items that are created with the OBD-II PID type are PIDs that are a part of the OBD-II standard which is used by most internal combustion engine (ICE) vehicles. On the other hand Proprietary PIDs are PIDs that are usually used by vehicle's that don't follow the OBD-II standard, for example electric vehicles or more advanced ICE vehicles.

After applying the filters for the vehicle you're interested in, you will be presented with a list of search results. You can browse through them and if you find one that you would like to use or experiment with you can add it to your library. By clicking on the item you're interested in, a pop-out window similar to the one below will show up:

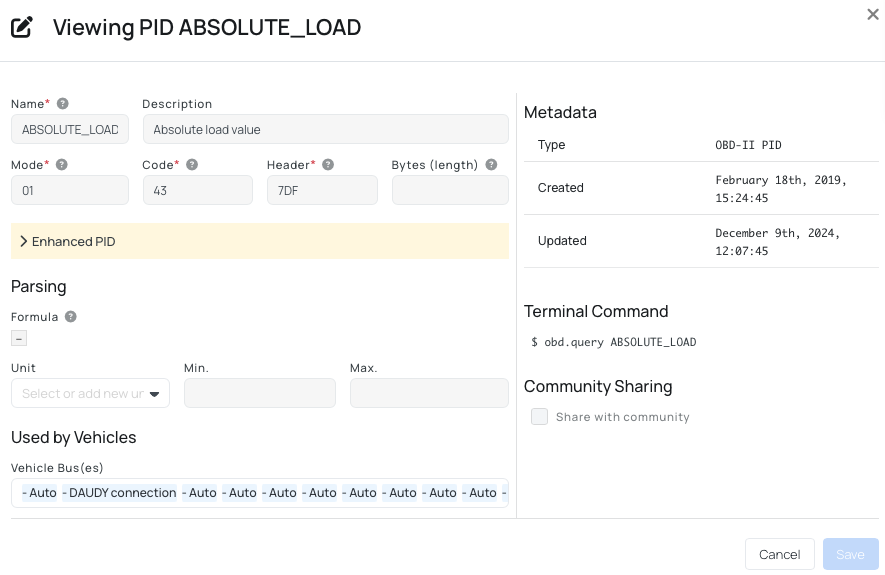

On that window, you can see details such as the exact parameters for the PID like the header, mode and PID code that it uses, the formula that parses the raw bytes into human readable format and more (for a description of these fields, read the following section). Finally, if you'd like to use this PID, you can click on the green 'Add to library' button and a copy of this PID will show up in your personal library. From there, you can edit it if it needs to be changed.

Creating PIDs

Let's now go through the process of creating a PID in your own library. We will use the standard OBD-II RPM PID as an example. Below is the raw PID that would be send on the CAN bus of a vehicle:

7DF # 02 01 0C 00 00 00 00 00

Let's try to dissect this PID a little bit. Just as a reminder, PIDs are sent in hexadecimal format. The most noticeable element is the hash sign (#). This sign separates the PID's header from the PID's body. The header in this case is 7DF. Next, the first byte of the PID body shows the data length, in this case, we only have two bytes that need to be read, so the body length is 02. Next, the mode is 01 and the code is 0C. These two values are predefined by the OBD-II standard. More detailed information can be found in this guide.

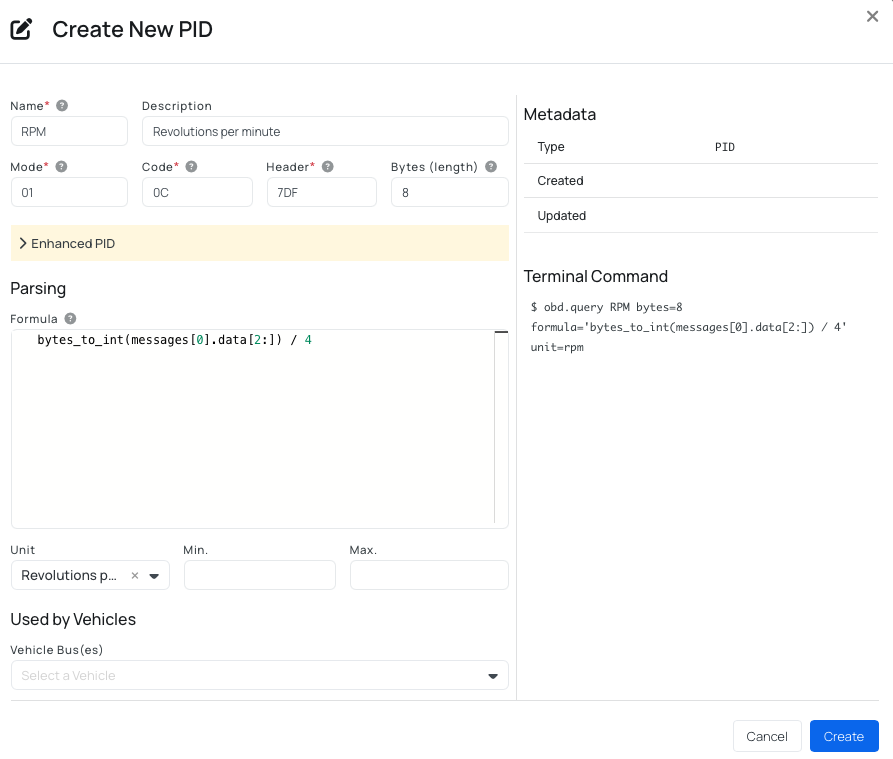

Now, let's shift our focus on the next task - we need to create the PID in the system. Firstly, we will need to go back to our own library and find the '+ Create' button (which should be located at the top-right section of the page). Clicking on that button will show a dropdown menu with two options, PID and CAN - select the PID one. This will bring up the following window (the fields in the screenshot are already filled up, so that it's easier for me to describe them after):

Let's go through the fields that are available and how to fit the raw PID we see above into the PID form.

Name: Short name of the PID that's being created.

Description: Optional description of the PID. This can be very useful if plan to share the PID with the rest of the community.

Mode: This is the mode that the PID is working in. We will type 01 in this field as described above.

Code: The hexadecimal representation of the requested PID. In this case, the code is 0C and so we will specify that.

Header: The header used to request the PID. 7DF is the standard header value for external OBD-II test equipment, so this is the one we'll use.

Bytes: This is the expected length of the response. If strict mode is enabled (can be selected by opening the Extended PID options) the device will ensure that the response is exactly 8 bytes long and if it isn't it'll raise an exception.

Formula: This is the formula that will be used to attempt to parse the raw response from the vehicle into (usually) numerical data.

Unit: The unit of the data (more examples: km/h, percentage, liters, etc.)

Min: The minimum value that this PID can return.

Max: The maximum value that this PID can return.

Vehicle Bus(es): A list of CAN busses that support this PID. If a vehicle is able to recognize this PID and return data back, it is recommended that you add the bus of that vehicle to the list.

Testing The PID

What does it mean for a PID to be supported by a vehicle? It means that if this PID was sent on the CAN bus of a vehicle, the vehicle would recognize it and return a valid response. So now the question is, how can we test the PID? On the right hand side of the window, there is a 'Run in Terminal' button which allows you to run the PID if your device is online and plugged into your vehicle. Remember to have your engine running while you execute the command. You are also able to send a PID on the CAN bus using the obd.query and obd.send AutoPi commands.

Community Sharing

You're also able to share the PID after you've created it and assigned at least one vehicle bus. Once you save the PID, you can re-open it and a new section will show up on the right-hand side called 'Community Sharing'. You need to select (tick) the 'Share with community' checkbox.

Creating CAN Messages

Let's try to also create a CAN message in our Library. It is a bit different comparing it to creating a PID because, as it is mentioned in the OBD-II introduction guide, PIDs are a simple request sent on the CAN bus, that the vehicle accepts and then returns data specific for the PID requested. CAN messages, on the other hand, are continuously broadcasted on the CAN bus and do not require any requests to be made. However, to be able to make any sense of the CAN messages, we need to specify which bytes within a message corresponds to which data point from the vehicle.

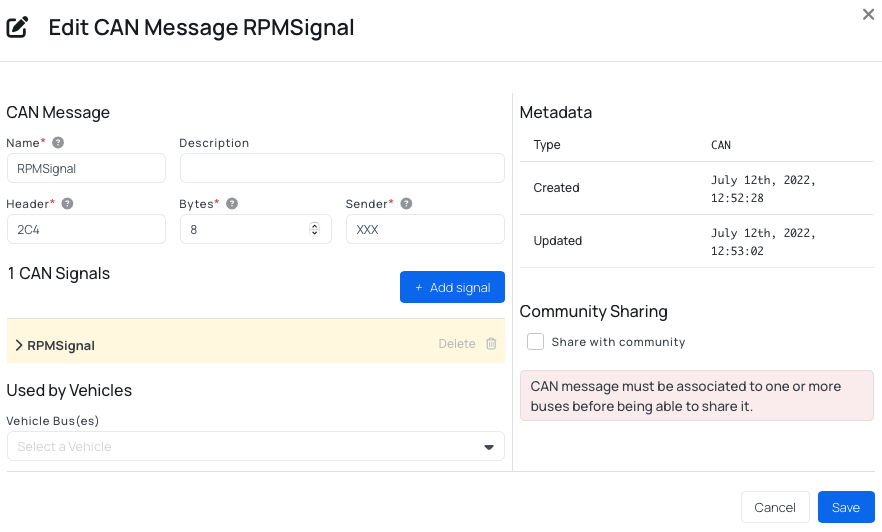

To start creating a new CAN message, you will need to click the '+ Create' button on the top-right section of the page. From the dropdown that shows up from clicking on the button, select CAN. This will bring up the following window (again, it is pre-filled for the purposes of this guide):

Name: Short name of the CAN message that's being created.

Description: An optional description for this CAN message.

Header: The hexadecimal representation of the header that this CAN message is recognized by.

Bytes: How long is the CAN message?

Sender: The name of the transmitting node of this CAN message - usually defined inside a DBC file, but can be any short string.

CAN Signals: This is a list of CAN signals that can be found inside a CAN message. Each CAN signal has the same form fields:

• Name: Short name of the CAN signal.

• Description: An optional description of this CAN signal.

• Endian: The endianness of this CAN signal - which is the most significant byte.

• Sign: Defines if the CAN signal should be treated as a signed or unsigned number.

• Start: Defines the starting bit of the CAN signal.

• Length: How long the CAN signal is.

• Factor: Used to calculate the real value off of the CAN signal. Formula: VALUE = (RAW_VALUE * FACTOR) + OFFSET

• Offset: Used to calculate the real value off of the CAN signal.

• Unit: The unit of the value returned.

• Min: The minimum value possible for this CAN signal.

• Max: The maximum value possible for this CAN signal.

• Receivers: The name of the receiving node of this CAN message - usually defined inside a DBC file, but can be any short string.

Vehicle bus(es): A list of CAN busses that support this CAN message. If a vehicle continuously writes this CAN message on its CAN bus, it is recommended that you add the bus of that vehicle to the list.

Testing the CAN Message

It is a bit more difficult to test CAN messages. You will need to create CAN Signal Loggers for your device in order to see if they are able to generate the data you're looking for. Another option you can try is to use the obd.dump command to dump all CAN frames recorded on the CAN bus and compare the frames received to the definitions that you've made - they should match on the header at least.

Community Sharing

The process of sharing a CAN message is exactly the same as the process for sharing a PID. After you assign a bus to the CAN message, you will have the option to share it with the community on the right-hand side of the Edit CAN Message window. You will need to select (tick) the 'Share with community checkbox.

Importing Library Items From Files

The Library supports importing both CAN messages and signals through DBC files, as well as PIDs through JSON files. As an example, let's use this simple DBC file:

VERSION "1.0"
BO_ 938 FRONT_LEFT: 4 IO  SG_ LEFT_SEAT_TEMP: 0|8@1+ (1,0) [0|0] "c" ECU1  SG_ LEFT_BACK_TEMP: 8|16@1+ (1,0) [0|0] "c" ECU1
BO_ 937 FRONT_RIGHT: 4 IO  SG_ RIGHT_SEAT_TEMP: 0|8@1+ (1,0) [0|0] "c" ECU1  SG_ RIGHT_BACK_TEMP: 8|16@1+ (1,0) [0|0] "c" ECU1
CM_ SG_ 1 LEFT_SEAT_TEMP "Temperature of the front left seat";

First Import

When you first select a file for import, you will be presented with options looking like this:

Here you can select whether the file's contents are CAN messages & signals or PIDs. You can also set a namespace, which will prefix all the imported items with the selected Name string. This can help when you need to manage multiple files, which have conflicting signal or PID names. Once you've set these options, the file will be sent for validation. Once that's done, you'll be able to review all the messages and signals that will be imported. You can also ignore messages and signals, which you'd like to not be imported. For this example, we're ignoring the left seat's temperature.

Adding Signals to Existing Messages

Once you've selected what to create and what to ignore, click on the upload button and the messages will be created. If you now try to import the same file with the same options, you'll see that front right seat, which we imported with all its signals, is unchanged. Front left, however, is shown as changed, since we ignored one of its signals. Now we have the option to update the Front Left message by creating the Left Seat Temperature signal.

Updating Message and Signal Properties

To update a value, all you need to do is change it in the imported file and import it again with the same options. For this example, we're changing the unit of the Right Seat Temperature from Celsius to Fahrenheit.

Before: SG_ RIGHT_SEAT_TEMP: 0|8@1+ (1,0) [0|0] "c" ECU1After:  SG_ RIGHT_SEAT_TEMP: 0|8@1+ (1,0) [0|0] "f" ECU1

After uploading the file and validating, the signal shows as changed and the changed property's new and old values can be seen.

note

Setting a message's Option to 'Ignore' will force 'Ignore' to all its child signals.

Deleting Signals

You can delete signals by removing them from the DBC file, then importing the file. In this example, we're deleting the Right Seat's Backrest's Temperature.

Before:BO_ 937 FRONT_RIGHT: 4 IO  SG_ RIGHT_SEAT_TEMP: 0|8@1+ (1,0) [0|0] "f" ECU1  SG_ RIGHT_BACK_TEMP: 8|16@1+ (1,0) [0|0] "c" ECU1
After:BO_ 937 FRONT_RIGHT: 4 IO  SG_ RIGHT_SEAT_TEMP: 0|8@1+ (1,0) [0|0] "f" ECU1

Working With PIDs

Unlike CAN messages and signals, there's no industry standard file format for PIDs. Therefore, there's a custom JSON based format that you need to follow. This is an example PID JSON file:

[    {        "fields": {            "type": "PTY",            "header": "700",            "mode": "220",            "code": "0103",            "bytes": null,            "frames": null,            "strict": false,            "formula": "bytes_to_int(messages[0].data[-3:])",            "unit": "km",            "min": null,            "max": null,            "datatype": null,            "parent": null,            "name": "TractorLighting",            "description": "Tractor's light emission",            "hash": "",            "initial_hash": null,            "can_extended_address": null,            "can_flow_control": {                "filter": {                    "pattern": "708",                    "mask": "7FF"                },                "id_pair": {                    "receiver_id": "700",                    "transmitter_id": "708"                }            },            "can_messages": []        }    },    {        "fields": {            "type": "PTY",            ...        }    }]

Legacy Importer

Depending on what version you are using, you might see multiple "Import" buttons in the library. This is because there are 2 versions of the importer: the new and the legacy. The legacy importer was able to import CAN messages and signals, but could not handle updates, deleted items or PIDs.

DBC files describe the CAN network traffic of a vehicle. It specifies what modules are within it, what CAN messages they can send, the messages' signals and details about how to parse them. In this section we are going to review how you can import these files in your Library, how to keep them up to date, how to improve their readability and how you can share them with the rest of the community.

1. Go to OBD Library > My Library and click on the Import button:
2. Select DBC from the dropdown menu that shows up and select the file from your filesystem.
3. A list of the imported CAN signals will show up in your library.

Adding Descriptions for Better Readability

Some signal names can be very self explanatory. However others might be harder to understand. You can add descriptions to those messages to make it easier to recognize them in the future or for other fellow users, if you decide to share those signals with the community.

To add a description for a signal, click on the signal you want to edit. A CAN message editing window (like the one from the previous section) will pop out. In this window you'll be able to see the CAN message at the top with all CAN signals associated with it in a list below. The CAN signal that you clicked on will be already expanded and highlighted in yellow.

Edit the description field of the signal and click Save. You can also associate that CAN message with a vehicle CAN bus. You should see the CAN signal update with the new description:
