Screw terminal pinouts for IP67

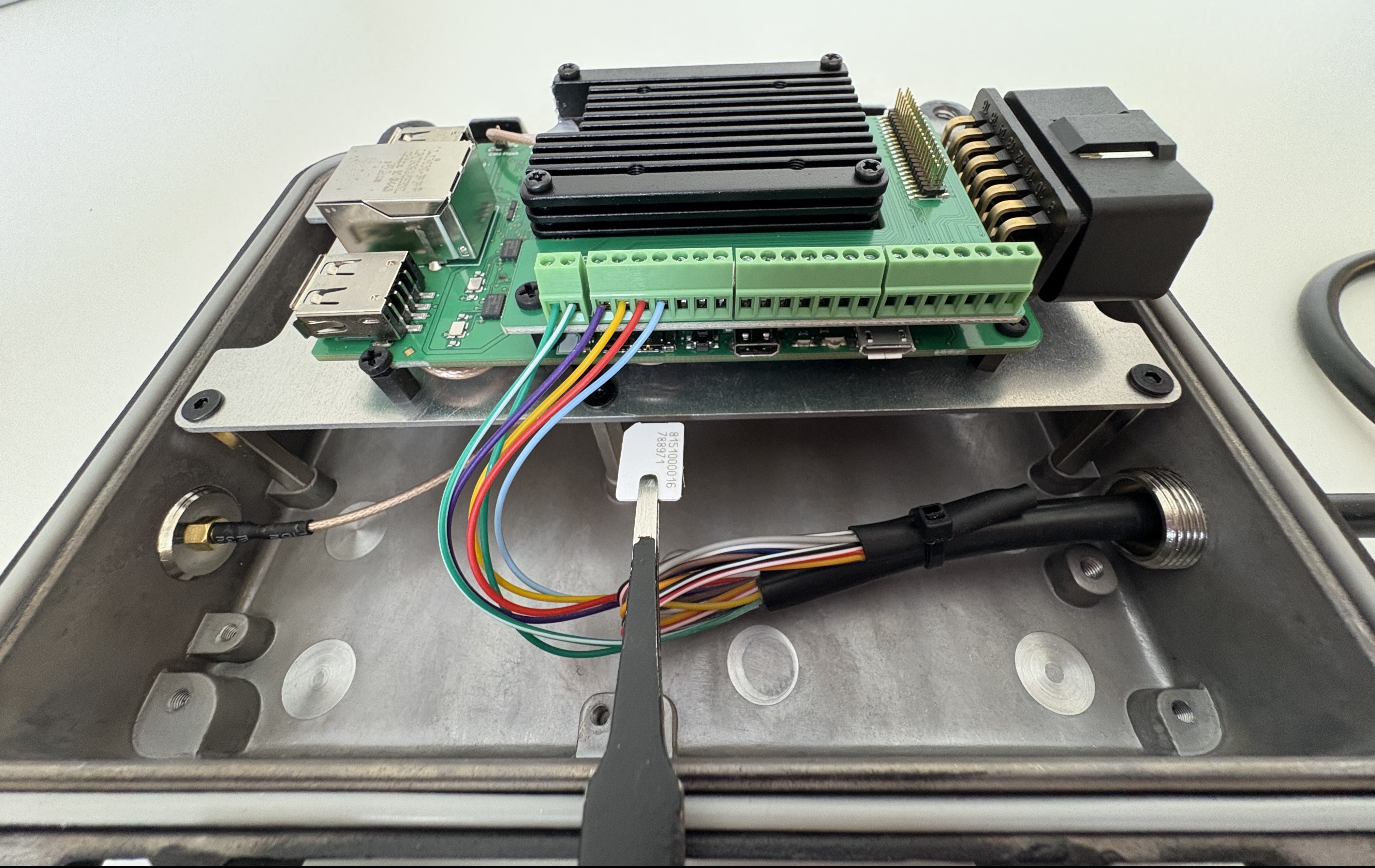

The AutoPi CAN-FD Pro device is packed into a durable, IP67-rated aluminum casing — built to withstand dust, dirt, and water, making it perfect for rugged, outdoor, or industrial installations. Inside the device it's possible to access additional GPIO pins for your project. These are conviniently located at a set of screw terminal blocks inside the device. There is 23 connections in total:

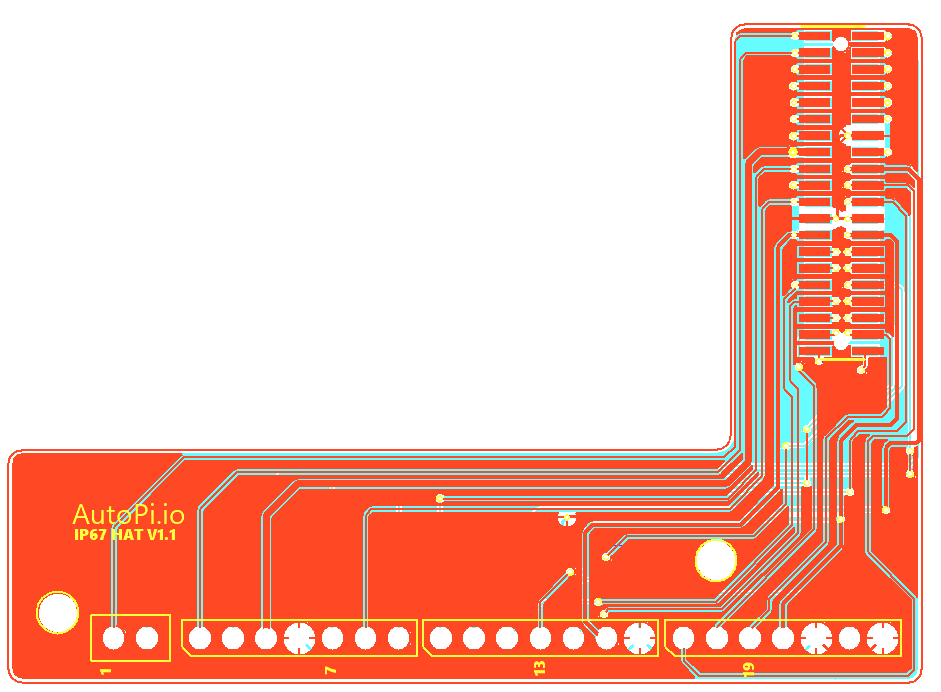

The screw terminals is applied to a custom AutoPi HAT board located inside the CAN-FD Pro device, giving you easy access to a number of selected pins:

The pinouts have the following functions assigned, note some of them are already pre assigned for the OBD-II connector on the device:

Pin	Function	Used	Description
Pin 1	HS_CAN_HI	Yes	See here
Pin 2	HS_CAN_LO	Yes	See here
Pin 3	MS_CAN_HI	Yes	See here
Pin 4	MS_CAN_LO	Yes	See here
Pin 5	Vcc12V	Yes	See here
Pin 6	GND	Yes	See here
Pin 7	RPI_GPIO22	No	See here
Pin 8	RPI_GPIO24	No	See here
Pin 9	RPI_GPIO27	No	See here
Pin 10	Vcc5V_EXT	No	See here
Pin 11	Vcc3V3_EXT	No	See here
Pin 12	RPI_PWR	No	See here
Pin 13	PICO_EXT_17	No	See here
Pin 14	PICO_EXT_28	No	See here
Pin 15	Vcc5V	No	See here
Pin 16	GND	No	See here
Pin 17	RPI_GPIO23	No	See here
Pin 18	RPI_ID_SD	No	See here
Pin 19	RPI_ID_SC	No	See here
Pin 20	Vcc3V3	No	See here
Pin 21	GND	No	See here
Pin 22	EXT_WAKE_12V	No	See here
Pin 23	GND	No	See here

If you want to use some of the additional pins in the screw terminal, then its important that you use the correct cable transfer out of the box, to maintain the IP67 integrety. An alternative is to use some of the unused cables in the OBD connector as this is already IP67 rated. These unused cables has been neatly tied up inside the box in flex wrapping.
